Return Plenum 12.5x16x36

Return Plenum 12.5x16x36 provides an organized connection between compatible HVAC equipment and the return-air duct system. It is designed to collect air returning from the occupied space and direct it toward the air handler or furnace for filtering, heating or cooling.

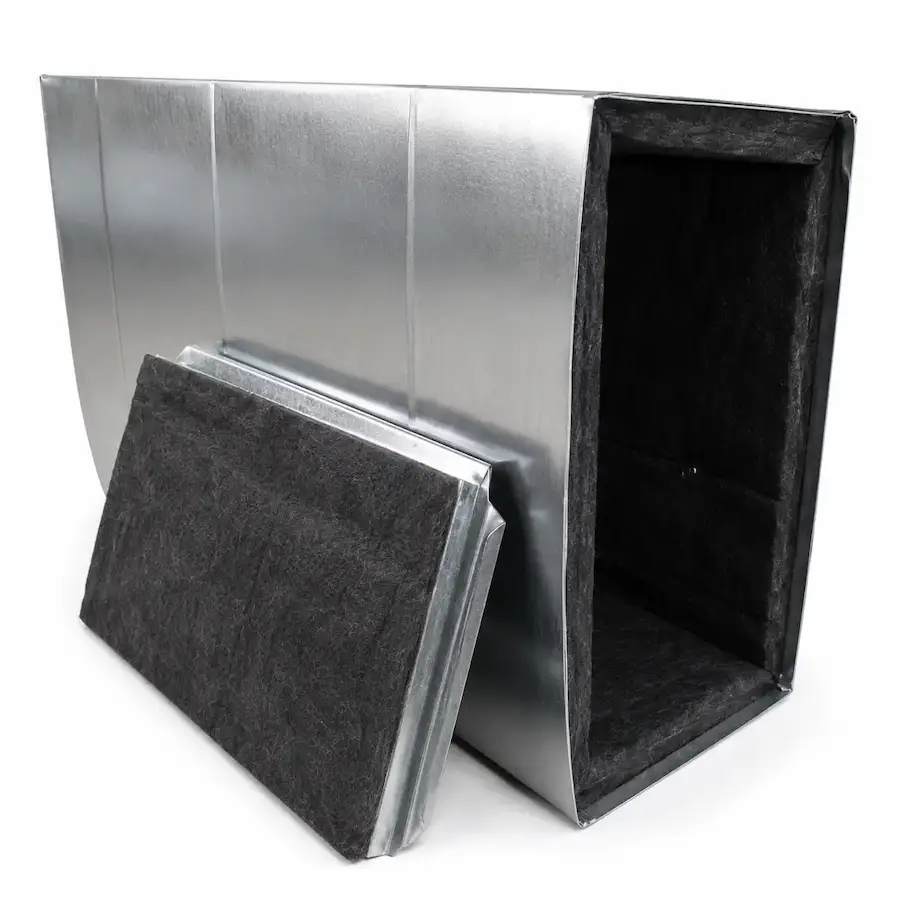

This return plenum measures 12.5 inches by 16 inches by 36 inches. Its four-piece assembly incorporates two L-shaped side sections and beaded panels for increased structural strength. Confirm all equipment and duct dimensions before ordering.

Return Plenum 12.5x16x36 Features

The Return Plenum 12.5x16x36 creates a defined return-air chamber for compatible residential HVAC systems. Its rectangular configuration provides surfaces for making the necessary equipment and return-duct connections.

• 12.5-inch width
• 16-inch depth
• 36-inch overall length
• Designed for return-air installations
• Four-piece construction
• Two L-shaped side sections
• Beaded panels for increased strength
• Suitable for compatible HVAC equipment
• Useful for new installations and replacement projects

The beaded design helps reinforce the panels and reduce unwanted movement. Proper installation and support remain necessary to prevent vibration, air leakage and excessive stress on the connected equipment.

Supporting Proper Return Airflow

The Return Plenum 12.5x16x36 forms part of the return side of the HVAC air-distribution system. Return air moves from the building through grilles and ductwork before entering the plenum and reaching the indoor equipment.

A properly designed return system helps provide the blower with the airflow required for dependable operation. Restricted return airflow can contribute to elevated static pressure, reduced comfort, excessive noise and performance problems.

The plenum must be sized as part of the complete return-air design. Equipment capacity, blower performance, filter dimensions, duct length and the number of return grilles all influence the required configuration.

This product should not be selected solely by HVAC system tonnage. Cabinet sizes and return-air requirements can vary between manufacturers, models and installation orientations.

Installing the Return Plenum 12.5x16x36

Before installing the Return Plenum 12.5x16x36, measure the equipment connection and available installation space. Verify the 12.5 x 16-inch cross-section and confirm that the 36-inch length fits the intended location.

Consider nearby framing, electrical connections, refrigerant piping, gas piping and condensate drains. The installation must also preserve the service clearances required for accessing the HVAC equipment and air filter.

Position the plenum squarely with the equipment opening or approved transition. Use installation methods and fasteners appropriate for the connected materials. The assembly should receive sufficient support and should not place unnecessary weight on the equipment cabinet.

Seal all joints, seams and penetrations using HVAC-approved mastic, sealant or tape. Proper sealing helps prevent unconditioned air, dust and insulation particles from being pulled into the return system through unintended openings.

Connecting Return Ductwork

The Return Plenum 12.5x16x36 can be connected to compatible return ductwork using properly sized collars, takeoffs or transitions. The location and dimensions of each opening should be determined by the planned airflow and duct design.

Mark every opening carefully before cutting the plenum. Avoid placing connections too close to panel seams, equipment fasteners or structural supports. Remove sharp edges and loose metal fragments after completing each cut.

Secure each duct connection mechanically and seal its complete perimeter. Flexible duct should be installed without excessive compression, sagging or sharp bends because these conditions can restrict return airflow.

Rigid return duct should remain properly aligned and supported. The plenum should not carry the full weight of long duct sections or unsupported transitions.

Air Filter Considerations

The air filter must remain correctly positioned within the return-air path. Depending on the system design, the filter may be installed at a return grille, equipment cabinet, filter rack or another approved location.

Ensure the filter can be removed and replaced without dismantling the Return Plenum 12.5x16x36. Insufficient access can make routine maintenance difficult and may lead to filters remaining in service longer than recommended.

The filter dimensions and efficiency rating must be compatible with the HVAC equipment. A filter that creates excessive resistance may reduce airflow even when the plenum and ductwork are properly sized.

Sealing and Insulation

Return-side leakage can draw air from attics, garages, wall cavities or other unintended spaces. This may introduce heat, humidity, dust and odors into the HVAC system. Thorough sealing is therefore important for both performance and indoor comfort.

The product listing does not specify an insulation rating for this plenum. If the installation is located outside the conditioned space, additional insulation or vapor-barrier treatment may be required by the project design or local energy code.

Any field-applied insulation should provide continuous coverage without blocking equipment access, filter openings or required service panels. Follow applicable codes and installation instructions.

Confirming Equipment Compatibility

Measure the return opening instead of relying only on the equipment’s brand or cooling capacity. The Return Plenum 12.5x16x36 should match the planned connection or be paired with a properly designed transition.

Field modifications may be required when the equipment and plenum dimensions differ. These modifications should not reduce the effective return-air opening or create abrupt restrictions.

A qualified HVAC professional can determine whether the plenum provides enough cross-sectional area for the required airflow. The technician should also evaluate the complete return system and measure static pressure after installation.

Inspection and Maintenance

Inspect the plenum during routine HVAC service. Look for loose panels, open seams, air leakage, corrosion, dust accumulation or signs of condensation.

Unusual vibration or whistling sounds may indicate an unsealed connection, loose panel or airflow restriction. Correct these conditions promptly to protect the return system and connected equipment.

Keep the interior free from construction debris and other obstructions. If cleaning is required, use methods that will not damage the plenum, adjoining ductwork or HVAC components.

Professional Installation Recommended

Return Plenum 12.5x16x36 should be installed by a qualified HVAC professional. Correct sizing, support and sealing are essential for dependable return airflow and equipment performance.

This product includes the return plenum only. Collars, transitions, filters, ductwork, fasteners, insulation and sealing materials may be sold separately. Verify the included components before ordering.
