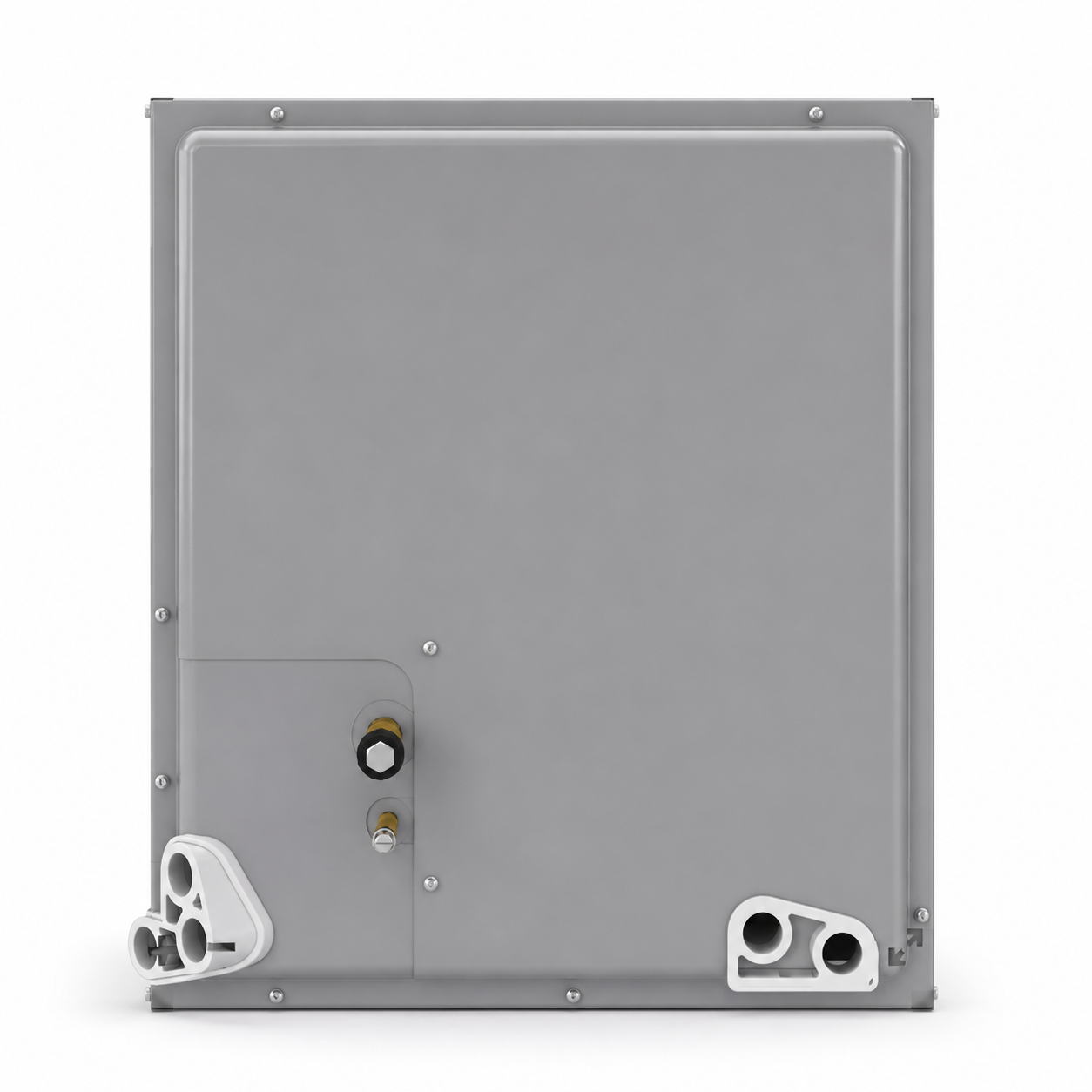

TCFY2414STAAMC – 2 Ton A-Coil, 14″ W, Cased, Multi-Position, Standard Efficiency, R-454B, TXV, A2L Sensor

TCFY Cased Coils For Gas and Oil Furnaces
Refrigerant Type: R-454B Airflow Capacity: 600-1,900 CFM

Features & Benefits

• These Indoor Furnace cased coils are designed for use with outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW
• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Coils are tested at the factory with an extensive refrigerant leak check
• Coils have copper sweat refrigerant connections
• Feature two sets of 3/4″ [19.1 mm] N.P.T. Condensate drain connections for ease of connection
• Chatleff metering device connections, at inlet and outlet of TXV or EXV and equalizer connections (TXV only)
• Approved for system application with variety of outdoor units
• Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
• Compatible with Germicidal Light System (UV resistant)
• Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
• Unique drain pan design maximizes application flexibility and condensate removal
• N-Coil design maximizes performance and minimizes height required at installation
• Coils are AHRI certified for system application with a variety of outdoor units
• Refrigerant Detection System™ **: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation – if excess refrigerant is detected

**Factory or field installed in the furnace coil or air handler and is applicable to the complete heating and cooling system featuring Low GWP Refrigerant (A2L)
