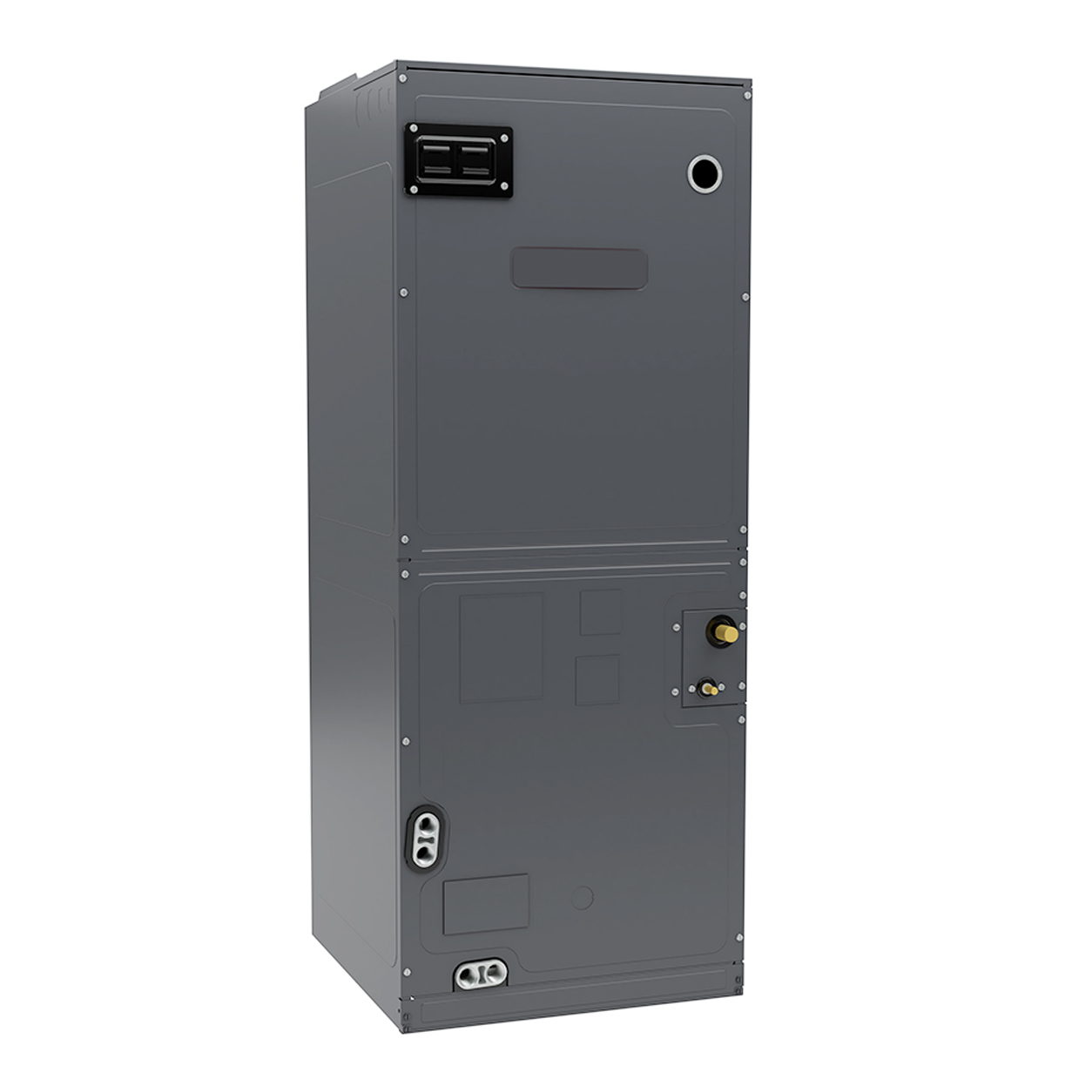

Goodman 2 Ton Air Handler
$1,290.48
Upgrade your HVAC system with the highly efficient Goodman 2 ton air handler, designed for versatile multi-position installation and optimized for the new R-32 refrigerant. Featuring an advanced ECM blower motor and a premium all-aluminum evaporator coil, this unit delivers exceptional indoor comfort, whisper-quiet operation, and proven energy savings.
- R-32 Optimized: Includes a factory-installed internal TXV and an integrated leak detection sensor for safe and efficient A2L refrigerant mitigation.
- High-Efficiency Motor: Equipped with a direct-drive, 9-speed ECM blower motor that ensures precise airflow control and reduces electrical consumption.
- Premium Coil Construction: Features a robust all-aluminum AlumaFin7™ evaporator coil with high-performance coated fin stock for superior heat transfer and corrosion resistance.
- Airtight Galvanized Cabinet: Built with a heavy-duty galvanized-steel cabinet tested for ultra-low air leakage (less than 2.0% at 1.0 inch H2O) to maximize system efficiency.
Description
AMST24BU1300 / Multi-Position, Multi-Speed, ECB-Based Air Handler with Internal TXV R-32
Internal factory-installed thermal expansion valves for cooling and heat pump applications
Direct drive, 9-speed ECM blower motor
Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
All-aluminum evaporator coil with high-performance coated fin stock
Coil mounting track for quick repositioning
Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
3 kW – 25 kW electric heater kits
AHRI certified
ETL listed
All-Aluminum tube/aluminum fin coil
Direct-drive, resilient-mount, 9-speed ECM motor
Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
High-efficiency evaporator coil
Quiet operation
Primary/secondary drain connection in a high-temperature plastic drain pan
Suitable for free-return installation (non-ducted return air)
Galvanized-steel construction
Factory-installed pull-type disconnect
Easy service access
AHRI Certified
ETL Listed
- Equipment
- Multi-Position, Multi-Speed, ECB-Based Air Handler with Internal TXV R-32
- Indoor
- Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
Additional information
| Weight | 112 lbs |
|---|---|
| Dimensions | 21 × 17 × 45 in |
| Model # | AMST24BU1300 |
| Application | Residential |
| Heating Type | Electric Heat |
About Goodman
About Goodman
Founded in 1982, Goodman is one of North America’s most recognized HVAC brands. As part of Daikin Industries, Goodman combines global engineering expertise with reliable performance, energy-efficient technology, and strong value for residential heating and cooling applications.Why Choose Goodman?
- Air conditioners, heat pumps, gas furnaces, air handlers, coils, and packaged units
- Energy-efficient SEER2 equipment options
- Durable components designed for dependable operation
- ComfortBridge™, SmartShift®, and other advanced technologies on select models
- Complete residential HVAC system solutions
Goodman Warranty and Registration
Goodman offers manufacturer limited warranties on eligible equipment. Coverage and registration requirements vary by model, application, installation location, and applicable regulations. Visit the official Goodman Product Registration portal to register qualifying equipment.Related products
